This ground power unit is the standard at many airports: simple operation, robust components, high reliability are appreciated by the users. Multiple options for operations from the Antarctic to the Sahara.

DESCRIPTION

  • GA series: 400Hz with / without 28Vdc with diesel engine
  • Lightweight construction with GRP hood for easy handling
  • Power from 90kVA to 180kVA available
  • Very small turning circle for maximum flexibility on the aircraft
  • Optional 1714 rpm for optimal compromise between performance and fuel consumption
  • Engine of your choice: John Deere, Deutz, Perkins, Cumins, Iveco

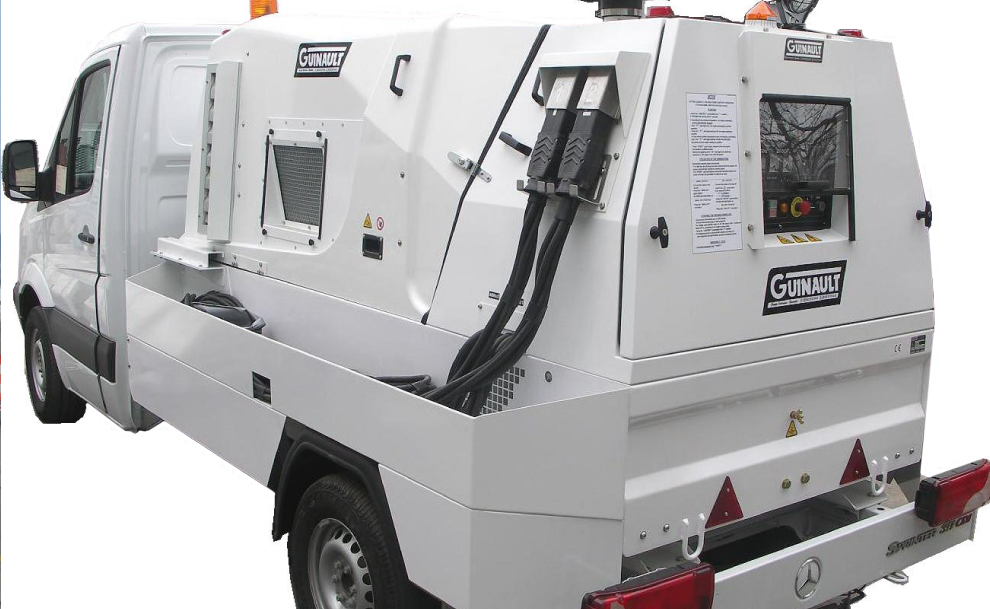

  • Mounting optionally on trucks, tractors etc.

Pictures

Bodenstromgeraete
Bodenstromgeraete
Guinault_Bodenstromgerät
Guinault_Bodenstromgerät
Bodenstromgeräte
Bodenstromgeräte
Bodenstromgeräte
Bodenstromgeräte

TECHNICAL DATA

MAIN FEATURES

ENGINE

  • Turbodiesel
  • Water cooled
  • Speed: 2182 UpM (optional 1714rpm)
  • Electronic speed controller EMR (Deutz) or GAC (Iveco)
  • Battery : 2 x 12V – 125Ah each

ALTERNATOR

  • GUINAULT Type AS250
  • 400Hz, 115/200V
  • 22 poles, brushless (28 poles when running at 1714rpm)
  • GUINAULT PCB RS525

SAFETY FEATURES

Electrical

  • Over voltage
  • Under voltage
  • Over frequency
  • Under frequency
  • Over Load

Engine

  • Battery charging fault
  • Over speed
  • High oil temperature
  • Low oil pressure
  • Clogged Air filter

OUTPUTS

115/200V-400Hz, length 10m with standard socket ISO461 / Stanag 3303.

MAIN ASSEMBLY

  • Galvanized chassis for full anti-corrosion protection
  • Swinging polyester canopy with large access doors for maintenance
  • Leading front axle with ball bearing
  • Braking when tow-bar is raised or lowered
  • Cable storage compartment on each side of GPU
  • Pneumatic tyres 600×9
  • 260Liters Fuel Tank

OPTIONS

  • 28VDC Output
    • 800Amp continuously, 2500Amp in peak (including ATR limitation at 1275amp)
    • TR aircraft current limiting
    • 1 output length 10m with standard socket Stanag 3302
    • simultaneous use of DC + AC output
  • Low engine speed, 1714rpm using Guinault 28 poles alternator (instead of 22 poles for 2182rpm).
  • Improved Sound Insulation
  • DFS400
  • Winter kit including engine pre-heating supplied by 50/60Hz mains for Extreme Low Temperature (<-25°C)
  • GPU anti-towing Safety : when cables are connected to the Aircraft, a specific sensor detects movements of the GPU
  • Sand Protection
  • Automatic Engine oil refilling system
  • Automatic stop of the unit if no power is consumed
  • Any additional electrical outputs upon request
  • Storage for Cones and Chocks
  • Bumpers on the front
  • Engines up to Stage 4 emission standard available
