High Reliability and Flexibility

TECHNICAL DATA

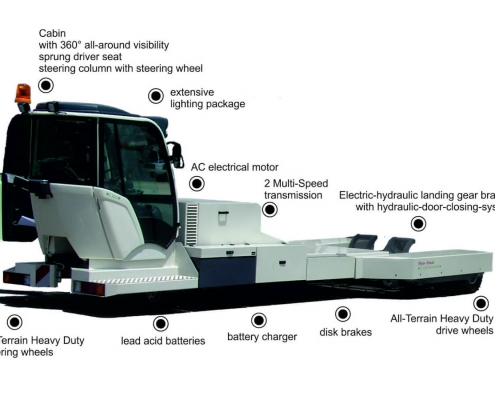

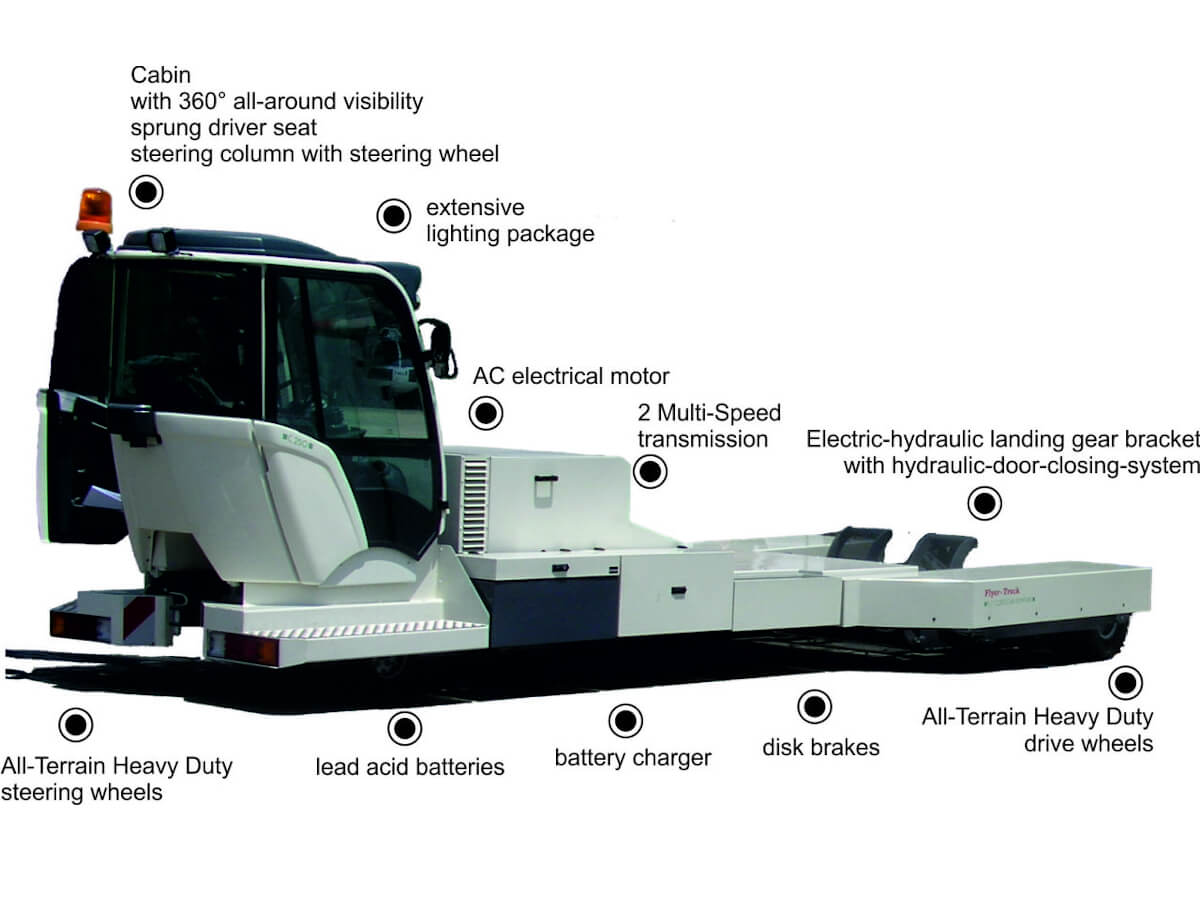

MAIN FEATURES

Drive system

2 AC drive motors each 48V, 5.0 kW
transmission PMS

Battery

Lead-acid batteries

Battery charger

HF charger 230/48V 120A with charge level indicator

Brake

Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake multi-disc brake

Speed

Forward and backward:
max. about 20 km / h

Frame

Loading weight: 3500 kg,
for aeroplanes approx. 25.0 t MTOW
weight empty: 3900 kg

Steering

Pulse contact control
electro-hydraulic steering operated by steering wheel

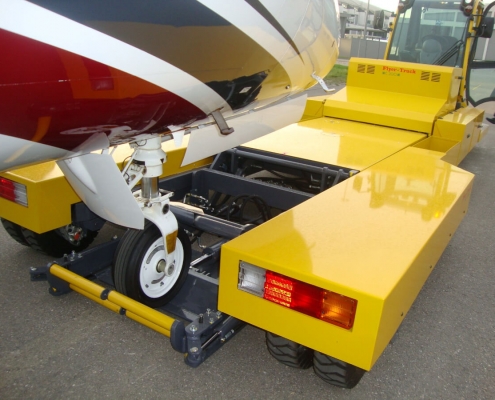

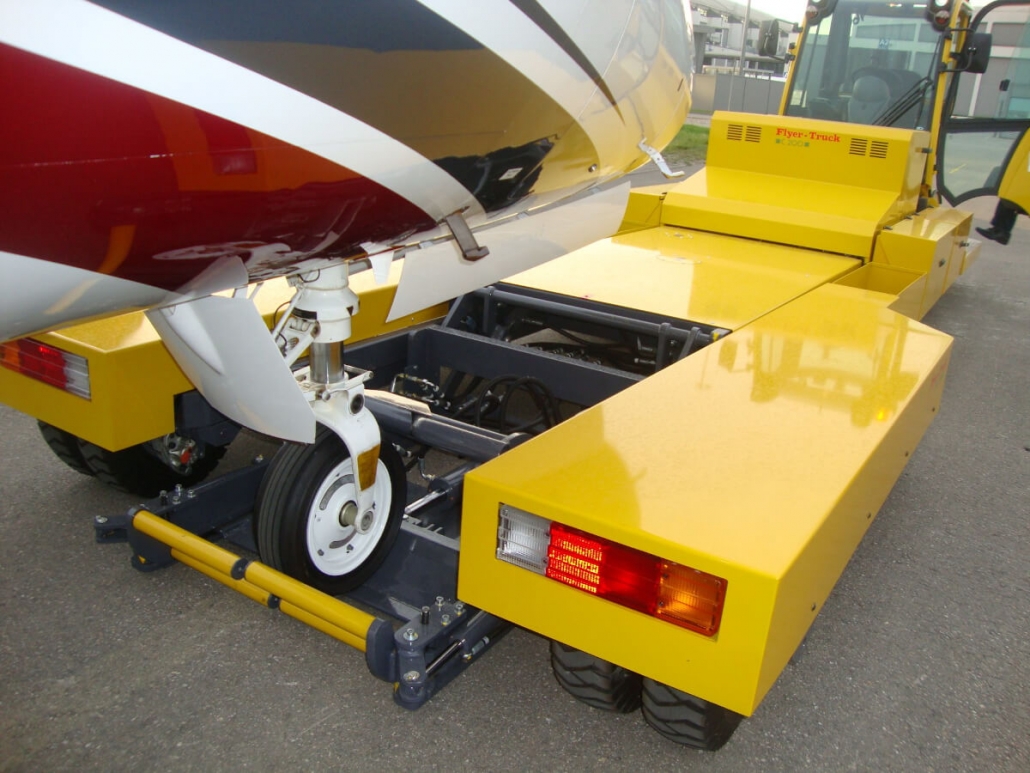

Landing gear bracket

Universal receptacle for double front landing gear, up to width tire 570 mm, with hydraulic front gear wheel hold system, hydraulic door closing system

Tire

Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire

Adapted for

Beechcraft, Cessna, Challenger, Embraer, Falcon, Gulfstream, Hawker
