High Reliability and Flexibility

TECHNICAL DATA

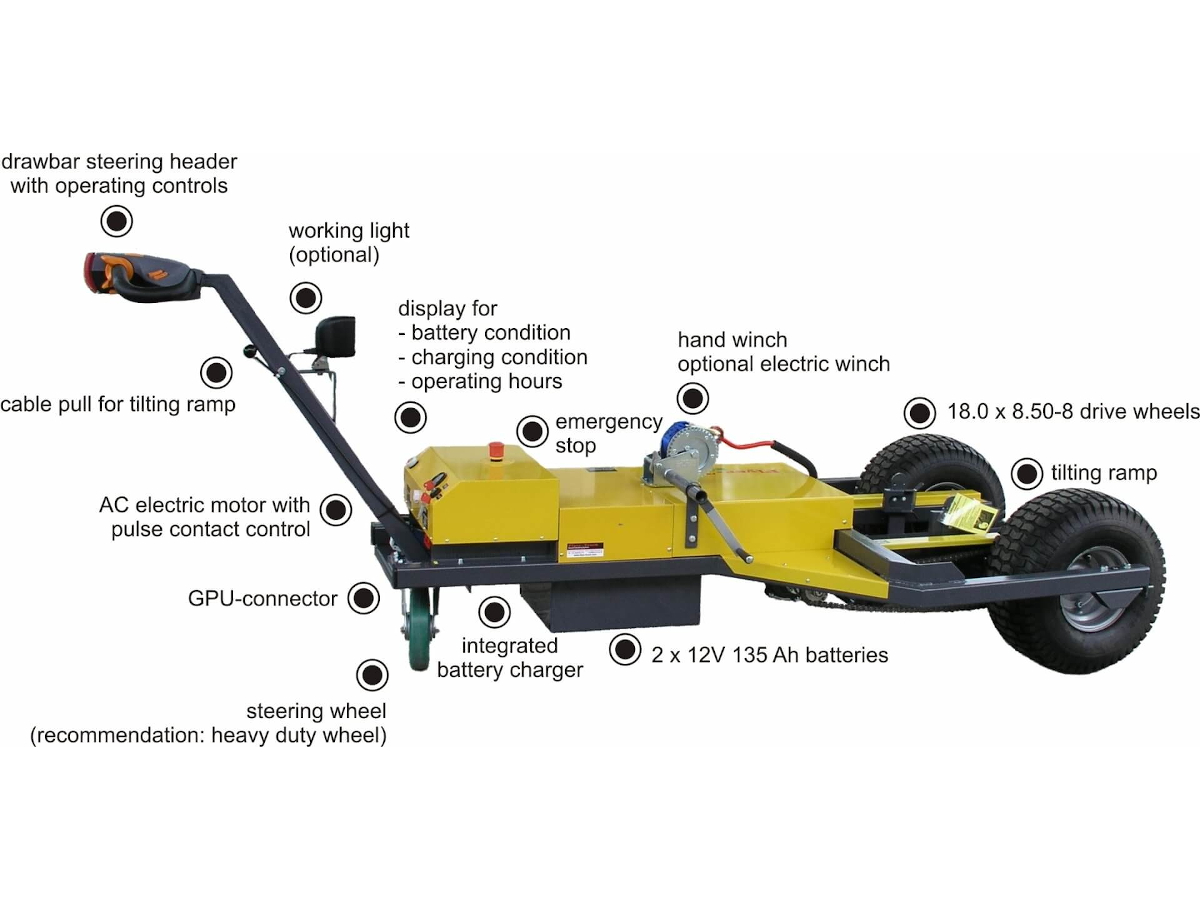

MAIN FEATURES

Drive system

Electric engine AC 24V 1,2 kW
Differential axis TX1
Pulse contact control

Battery

2 x 12V 135 Ah (C20)

Battery charger

HF charger 230/24V 18A with charge level indicator incl. adapter cable 230V 1,0m (charging cable)

Brake

Spring power brake magnetic 16 Nm/24V

Speed

for- and backward:
Step 1: approx. 0-3 km/h
Step 2: approx. 0-6 km/h

Frame

loading weight: max. 1100kg, for airplanes approx. 5,2 t MTOW
weight empty: 200 kg
dimension: L x W 2,75 x 1,21

Steering

Drawbar steering header Plastic case with driving switches, fast and creep speed, signal horn

Landing gear bracket

Simple bracket for nose wheel pick up with tilting ramp and hand winch with flat belt

Tire

18.0 x 8,50 – 8

Additional equipment

  • Working light
  • Storage box
  • Steering wheel heavy duty
  • Snow chains left and right
  • Electric winch
  • Safety pin and belt for Cessna
  • Cirrus SR20/22 tool
  • Diamond DA40 tool
  • Mooney tool
  • external GPU connector 24V

Adapted for

Beech 23, 24, Bonanza 33, 36, Baron 58, Cessna 150, 172, 182, 206, 210, Caravan I, 310, 340, 414, Golden Eagle 421, Cirrus SR20/22, Cirrus Vision Jet, Daher TB9, 10, 20/21, 200, TBM 700, 850, 900
Diamond DA20/40, 42, 62, Eclipse 500, Hondajet, Mooney, Pilatus PC-12, Piper PA28, 32, 34 Seneca, PA 46, Cheyenne I/II, Rockwell Commander 111-114, Tecnam P2006T, Vulcanair P68, VR

Got interested?

Find the product data sheet here.
