High Reliability and Flexibility

TECHNICAL DATA

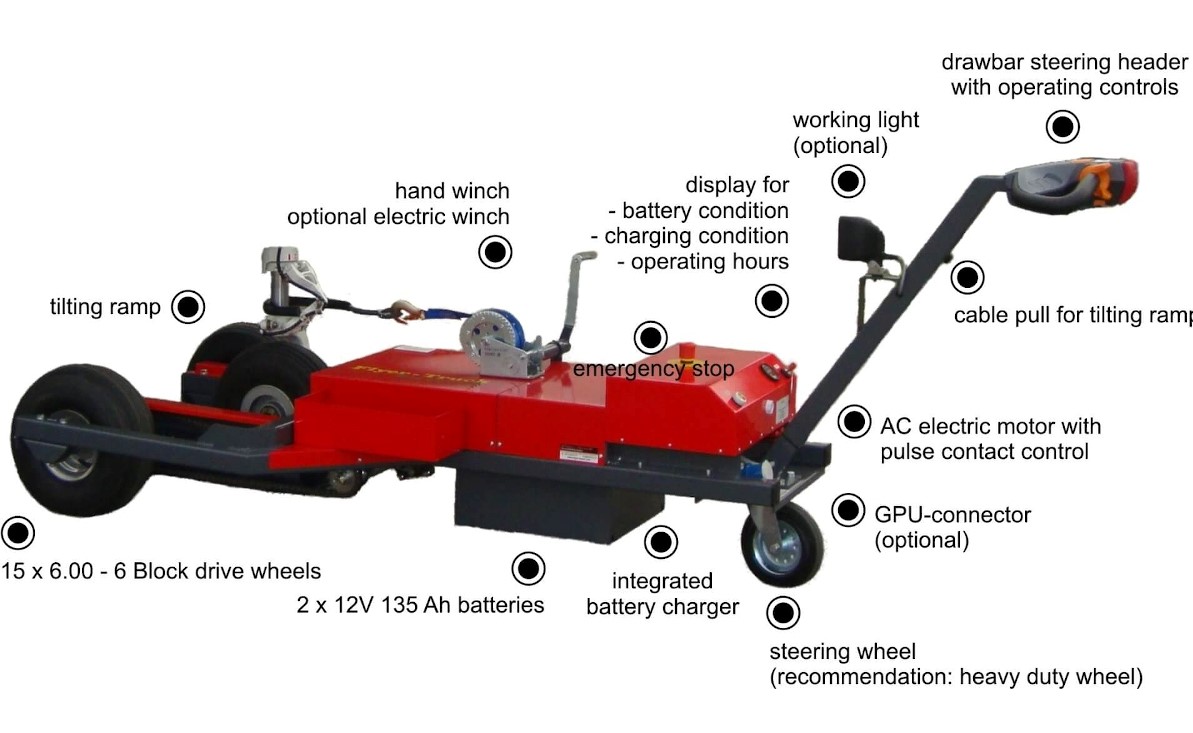

MAIN FEATURES

Drive system

Electric engine AC 24V 1,2 kW
Differential axis TX1
Pulse contact control

Battery

2 x 12V 135 Ah (C20)

Battery charger

HF charger 230/24V 18A 50 Hz with charge level indicator incl. adapter cable 230V 1,0m (charging cable)

Brake

Spring power brake magnetic 16 Nm/24V

Speed

for- and backward:
Step 1: approx. 0-3 km/h
Step 2: approx. 0-6 km/h

Frame

loading weight: max. 300kg, for airplanes approx. 2,5 t MTOW
weight empty: 180 kg
dimension: L x W 2,70 x 1,10

Steering

Drawbar steering header Plastic case with driving switches, fast and creep speed, signal horn

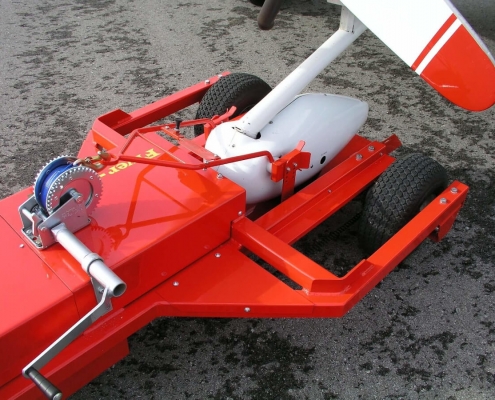

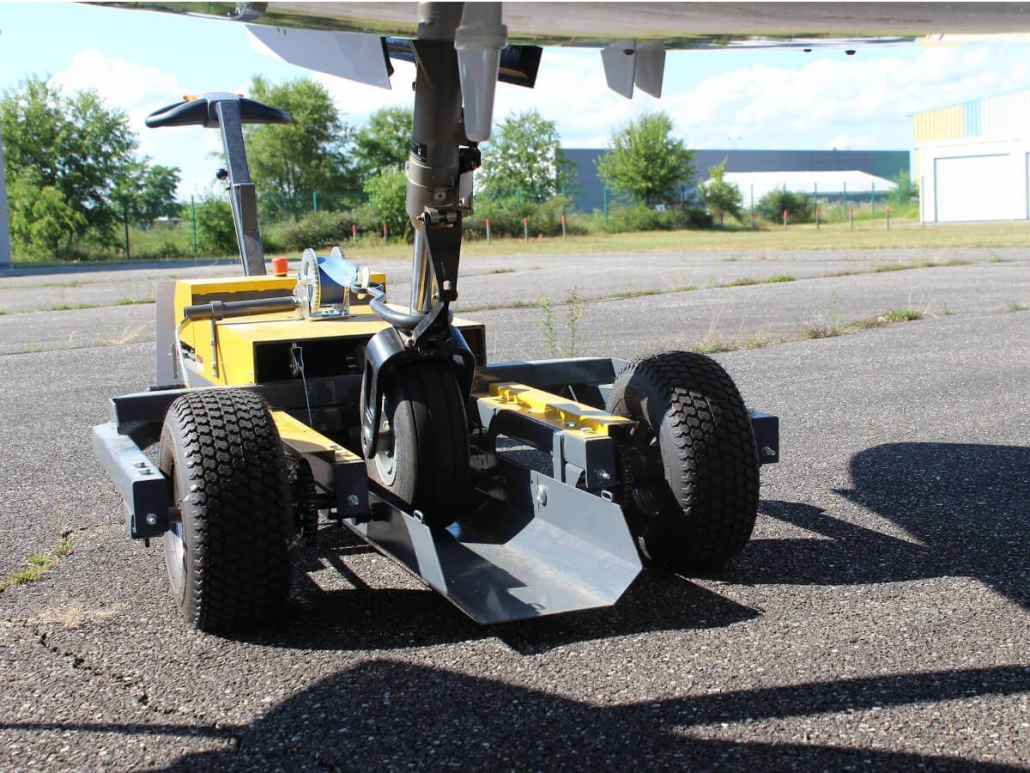

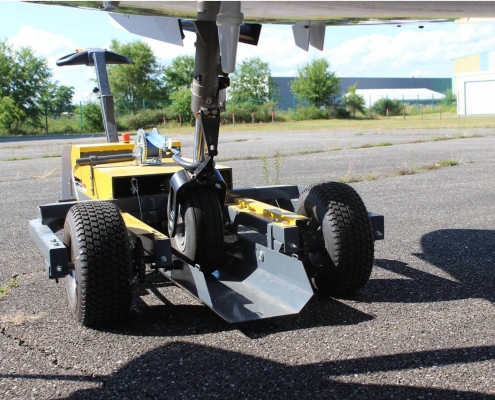

Landing gear bracket

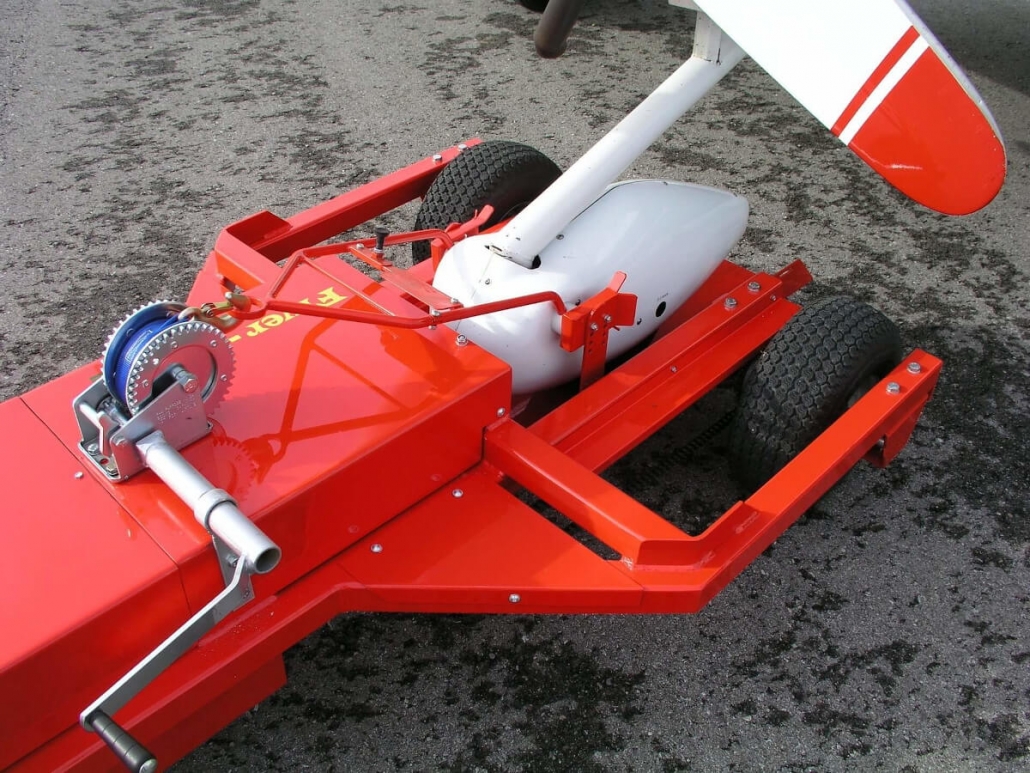

Simple bracket for nose wheel pick up with tilting ramp and hand winch with flat belt

Tires

15 x 6,00 – 6 Block

Additional Equipment

  • Working light
  • Storage box
  • Steering wheel heavy duty
  • External GPU connector 12 or 24V
  • Snow chains left and right
  • Safety pin and belt for Cessna
  • Cirrus SR20/22 tool
  • Diamond DA40 tool
  • Mooney tool
  • Wedge for aircraft with wheel fairing

Adapted for

Beech 23, 24, Bonanza 33, 36, Baron 58, Cessna 150, 172, 182, 206, 210, Cirrus SR20/22, Daher TB9, 10, 20/21, 200, Diamond DA20/40, 42, Mooney M, Piper PA28, 32, 34 Seneca, Rockwell Commander 111-114, Tecnam P2006T, Vulcanair P68, VR
