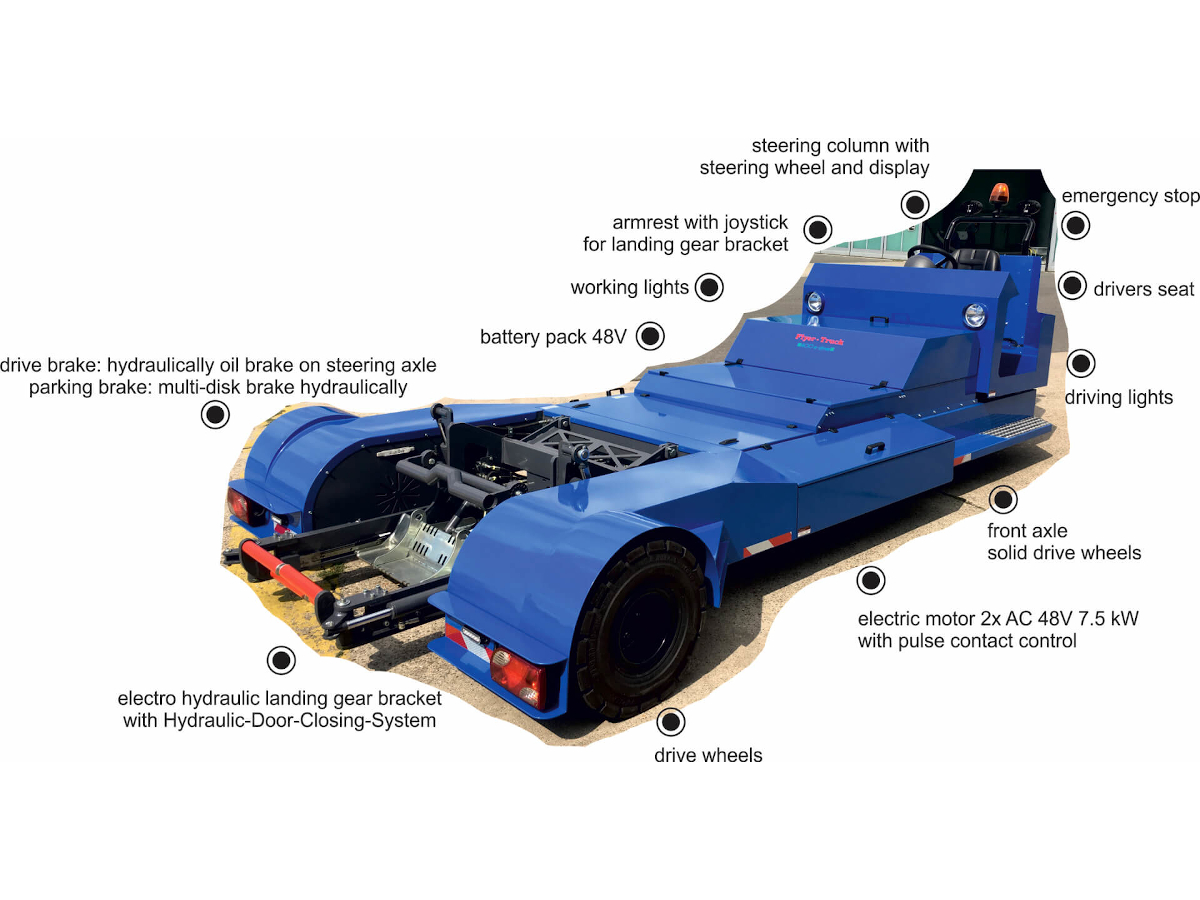

The Flyer-Truck FLT 400 e-drive is an aircraft tug for business jets up to 40 tons MTOW. A multi-talent for airplanes with single and double nose wheels.
It combines the demand for value stability, ease of use, flexible use without mechanical conversion measures and the highest quality workmanship.
Pictures
TECHNICAL DATA
MAIN FEATURES
Drive system
2 AC drive engine 48V 7.5 kW
Pulse contact control
Synchron and permanent steering
single gear PMS
Battery
lead-acid batteries
48V 640 Ah for approx. 6 hours operation time
Battery charger
230/48V 120A high frequency charger with state of charge and current holding device, 380V main power
Brake
drive brake: hydraulically oil brake on steering axle
parking brake: multi-disk hydraulically
Speed
for- and backward:
approx. 0-22 km/h
Frame
Loading weight: 4000 kg,
for aeroplanes approx. 25.0 t MTOW
weight empty: 3530 kg / 7782 lbs
dimension: (LxWxH) 5.40 x 2.55 x 1.90 m
Steering
Central steering axle with double wheel
Electric mechanic steering with steering column and steering wheel
Landing gear bracket
Hydraulic-Door-Closing-System (HDCS)
– hydraulically landing gear bracket
– with door closing system
– wheel holder for double and single wheels
– operation on driver’s position
Tire
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Adapted for
Beechcraft, Cessna, Challenger, Embraer, Falcon, Gulfstream, Hawker
Got interested?
Find the product data sheet here.
